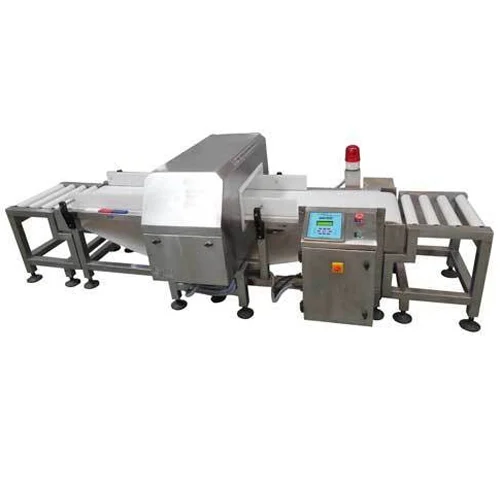

Micro Scan Metal Detector

Micro Scan Metal Detector

TARGET MICRO SCAN Metal Detection Systems are designed to meet the strict demands of the bulk food and packaged food industries monitoring for metal impurities.

Our metal detectors operate on the inductive measuring principle. A high frequency electromagnetic alternating field is generated. If a metal object passes through the metal detector, the detector experiences a change in the field based on the magnetic and electrical properties of the metal object. All types of metals (i.e. non-ferrous, ferrous and stainless) are detected.

The metal detector is integrated with a conveyor. Metal passing through the metal detector unit will be detected and optional devices can be used to reject the contaminated product. Metal detectors can be integrated with existing production lines or provided with a conveyor specifically matched to the requirements. Basic systems can be built with a simple stop alarm whilst more sophisticated designs can include failsafe systems to ensure contaminated product is rejected.

Automatic Reject Devices
Automatic rejection systems are designed as an integral part of the conveyor metal detector package. A wide variety of rejection systems can be used on any conveyor, as shown in the following illustrations, to insure contaminated product is removed without disruption to product flow. Contaminated product will be automatically rejected without impeding product flow.

Categories: , Tags: , , , , , , , , ,

Description

Design Considerations

  • Product flow should allow for evenly spaced products; this will minimize the number of products rejected when metal has been detected.
  • Reject mechanism should be fast enough and strong enough to remove product without disturbing product flow
  • Belting should be matched to environment and reject concerns
  • Product transfer between metal detector conveyor and existing conveyors

Testing Procedure
When testing a conveyor system normal product flow should be maintained. This will allow for a realistic test of all aspects of the conveyor system. A test package should be created with an imbedded metal test piece, such that it is located in the center of the aperture when passing through the metal detector. This test package should be introduced into regular flow before the metal detector conveyor, and allowed to be automatically rejected by the reject mechanism.

All rectangular aperture metal detectors are custom designed for use in a wide range of conveyorized applications including loose raw materials, processed products or packaged, finished products. Micro Scan metal detectors with a single frequency are suitable for dry and wet environments offering cost-effective metal detection. Our metal detectors are suitable for the inspection of large products and packs such as bulk bags, sacks and boxes.

Features:

  • Detects Ferrous, Non-Ferrous and Stainless Steel
  • The whole stainless steel structure with detecting head by adopting advanced electric and mechanical designing technique which is very durable
  • Logging Capability to a Printer for HACCP and ISO 9001 Documentation
  • Fully Automatic Product Effect Compensation
  • Product Type Memory (100 Different Products Can Be Stored in Memory)
  • Digital Signal Processor
  • Adjustable conveyor speed from 10m/min to 25m/min
  • Simple conveyor structure makes it convenient to disassemble and assemble
  • Fairly good waterproof ability.
  • LCD Display and very friendly user interface.
  • Phase discriminating technology that can effectively arrest the product effect.
  • Steady Performance.

Technical Specification:

Model TARGET MICRO SCAN METAL DETECTOR
Detection Method Balanced Coil
Detection Ability Ferrous, Non Ferrous and Stainless Steel metal contaminations.
Detection Adjustment Sensitive, Phase Angle, Timmer
Tunnel Width Depends up on the Products
Tunnel High Depends up on the Products (Custom Build)
Alarm Method Audion (Buzzer) & Visual (LED)
Belt Speed Adjustable
Power Source AC110V/220V 50-60HZ
Rated Output Appr.140W
